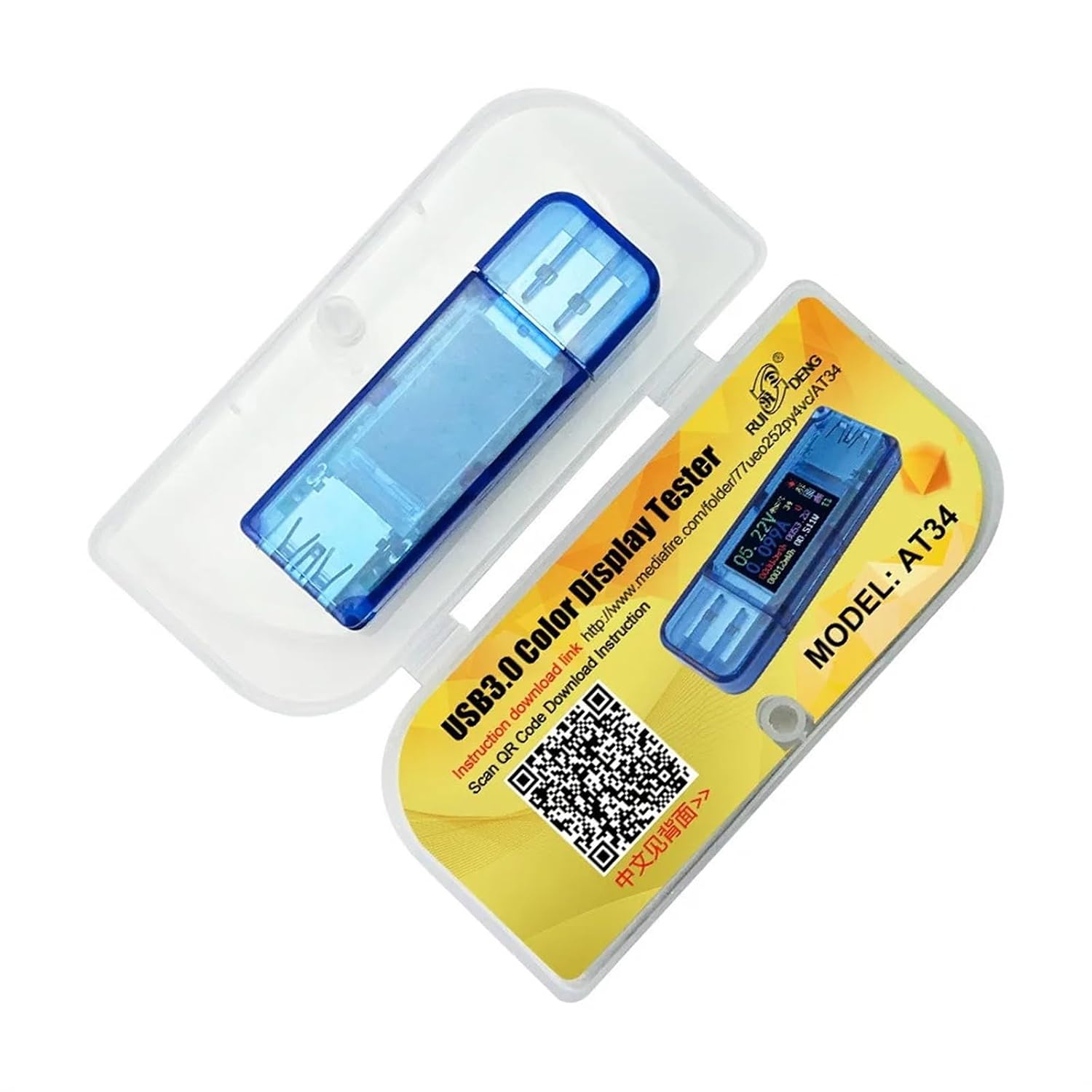

AT34 USB3.0 IPS HD Color Screen USB Tester Voltage Current Capacity Energy Power Equivalent Impedance Temperature Tester
Product details
| Management number | 210252047 | Release Date | 2026/04/02 | List Price | US$15.26 | Model Number | 210252047 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
AmmetersFeature:Product Model:AT34 Display screen:1.44 Inch color LCD displayVoltage measurement range:3.70-30.00V Voltage measurement resolution:0.01VCurrent measurement range:0-4.000A Current measurement resolution:0.001ACapacity accumulation rannge:0-99999mAh Voltage measurement accuracy:±(0.8%+4digits under 25°)Energy sccumulation range:0-99999mWh 999.99W Current measurement accuracy: ±(1%+4 digits, under 25°)Load impedance range: 1-9999.9 Power measurement range:0-120WTemperature range:-0°~80°/32°~176° Temperature measurement error:±3°/±6°Working temperature range: 0~45° Product size:64mmx22mmx12mmProduct weight:14g( With packaging 28g) Measurement Main Interface Quick Charge Recognition InterfaceButton Instruction:The button is located on back of the tester. There are 2 kinds , long press and short press. Short press is to realize switch between Measurement Main Interface and Quick Charge Recognition Interface. Long press is to realize switch of system setting.Introduction of Icon Function 1: Press and hold the button to choose this icon to open or close the screen 2: Press and hold the button to choose this icon to switch the temperature unit.3: Press and hold the button to choose this icon to switch data group4: Press and hold the button to choose this icon to clear data group.5: Press and hold the button to choose this icon rotate the screen Instruction:After power on, welcome interface will be displayed firstly, then main measurement interface will be shown. Interface 1: Main Measurment Interface.6:Voltage Measurement7:Current Measurement8:Accumulated Capacity9:Accumulated Energy10:Temperature Measurement11:Number of the Data Group in use12:Load Equivalent Impedance13:Power MeasurementPress the button on the back to switch to Quick Charge Recognition Interface
- Ammeters
- AT34 USB3.0 IPS HD Color Screen USB Tester Voltage Current Capacity Energy Power Equivalent Impedance Temperature Tester
| Color | One Color |
|---|---|
| Model | UHJGSEIE |
| Brand Name | UHJGSEIE |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | PFWGYPSX |
